K501 Pressure relief valve

K501 Pressure relief valve

SEND INQUIRY

Specifications:

  • Size:DN50-DN300

  • Pressure: PN10/16

  • Standard: DIN 2501 PN6/10/16, BS5155

Materials:

  • Body : QT450 Nodular cast iron

  • Seal :  Ductile Iron+Copper alloy

  • Stem : Stainless Steel

Characteristic:

  • Medium: Water, Waste Water

  • Temperature: 0 to 80℃

Recommended for you:

Detail / Feature / Application

Detail / Feature / Application

  • The hydraulic control valve is a valve controlled by water pressure, which is generally divided into two types: diaphragm type and piston type, and the working principle of these two are the same.

  • Slow opening function, no need traditional man-open or close.

  • Automatic operation in the whole process of pipe network operation.

  • The promised reliability in any vertical or horizontal installation in the pipeline.

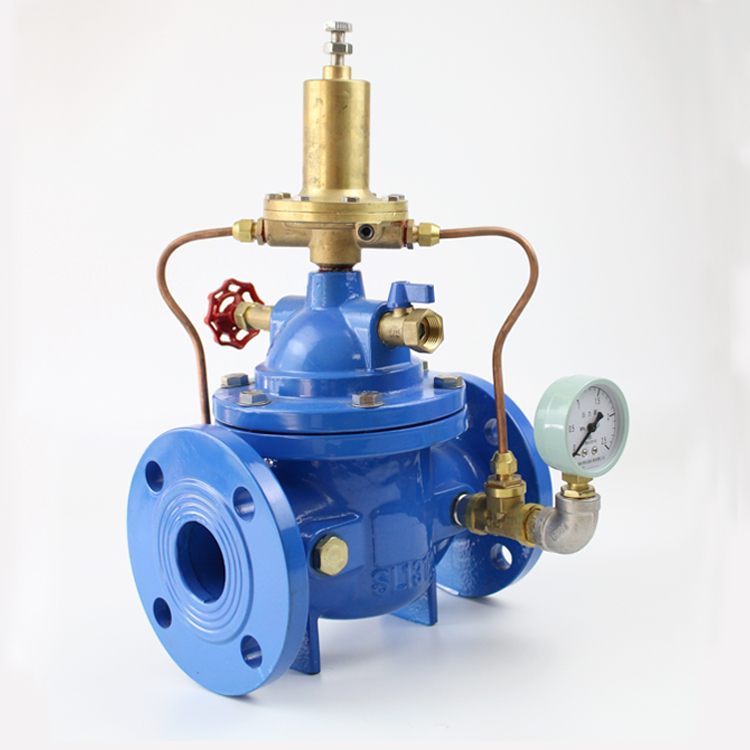

  • It consists of a master valve (as shown) and subsidiary conduit, pilot valve, needle valve, ball valve and pressure gauge. According to the purpose, function and location, it can be evolved into a remote control float valve, pressure reducing valve, slow closing check valve, flow control valve, pressure relief valve, and hydraulic electric control valve and so on.
