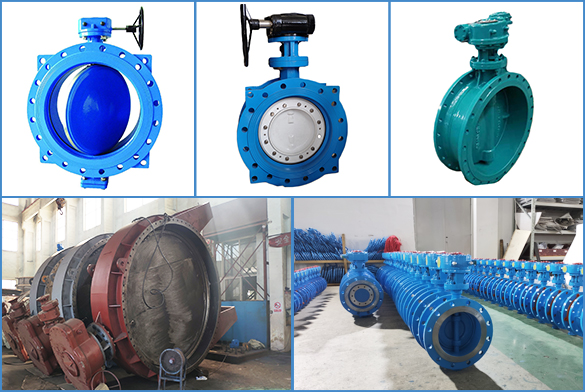

Triple Offset Butterfly Valve

■ Triple Offset Butterfly Valve Manufacturer is widely used in medium temperature under 425°c of metallurgical, power, petrochmical, and municipal construction, drainage and industrial pipe, for regulating traffice and truncated fluid to use.

■ The Triple Offset Butterfly Valve Manufacturer adopts three eccentric sealing structure, seat and disc almost no wear.

■ The seal ring of Triple Offset Butterfly Valve Manufacturer is made of stainless steel, with dual advantages for metal seal and elastomeric seal, both in the case of low and high temperatures with excellent sealing performance, corrosion resistance, long life and other characteristics.

■ The disc sealing surface uses alloy with long-life sealing surface.

■ No limited for flow rate, which can be installed in any directions.

Triple Offset Geometry of Triple Offset Butterfly Valve Manufacturer

The Triple offset valve or triple eccentric valve features a stem that is offset on both the X (1) and Y (2) axis of the butterfly valves center-line. This produces a cam-like motion as the valve operates. The third offset (3) consists of an inclined conical profile machined into the valve sealing surface, allowing rotary engagement and disengagement of the seat and seal ring without interference. This triple offset eliminates all rubbing between the seat and seal ring during valve travel, reducing seat and seal wear and extending cycle life.

The Triple Offset Butterfly Valve from KXC Group is a premier isolation valve well-suited for operation in light vacuum to high-pressure applications and ideally suited for applications requiring absolute zero leakage. Compared to gate, globe or ball valves of the same size and pressure class, KXC provides space and weight savings while minimizing installation and maintenance costs.

The resiliency of the seal ring ensures uniform peripheral sealing with the seat, achieving full shutoff regardless of flow direction. KXC offers a solid metal seal ring for high-temperature and severe service applications to ensure bi-directional shutoff throughout the full pressure/temperature range.

KXC Group as a leading Triple Offset Butterfly Valve manufacturer, welcomes customers to contact us to get more detailed information of Triple Offset Butterfly Valve. We will serve you with high qualified Triple Offset Butterfly Valve products and considerate before & after sales services. Trust us and you won't regret on your choice!
