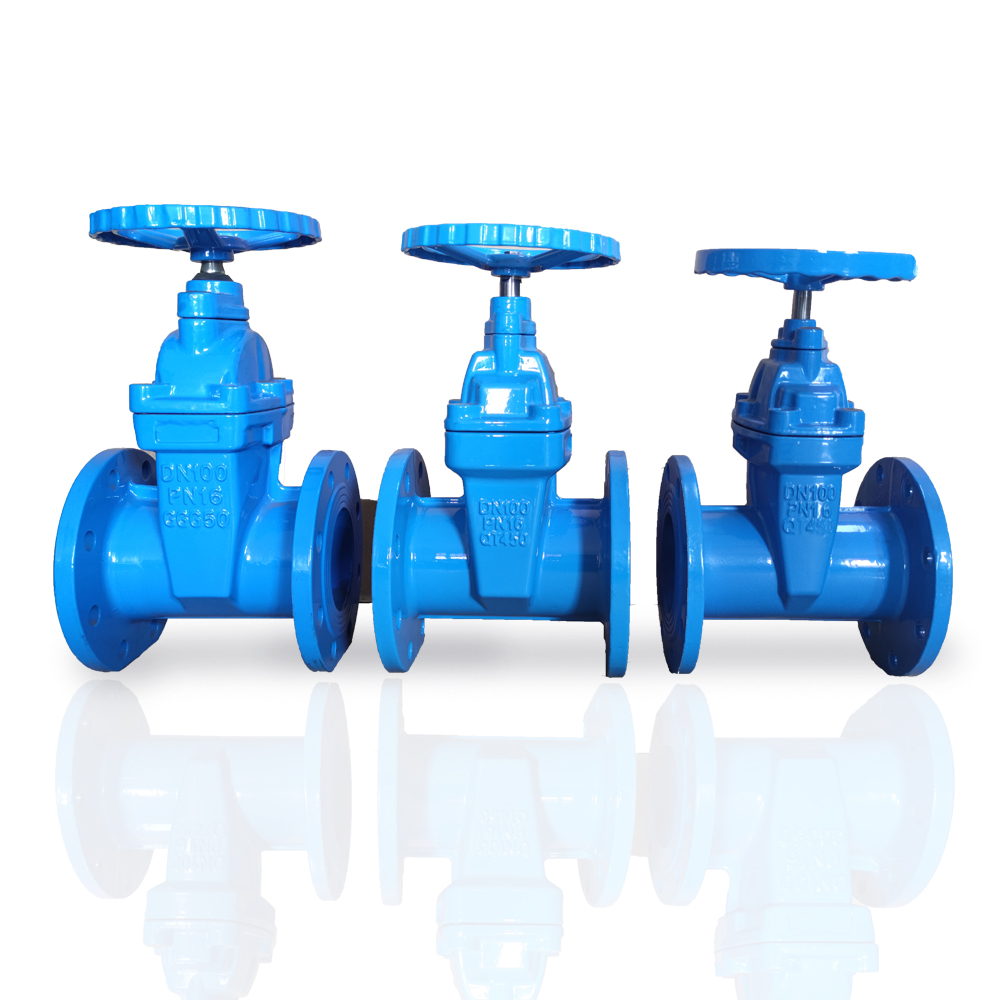

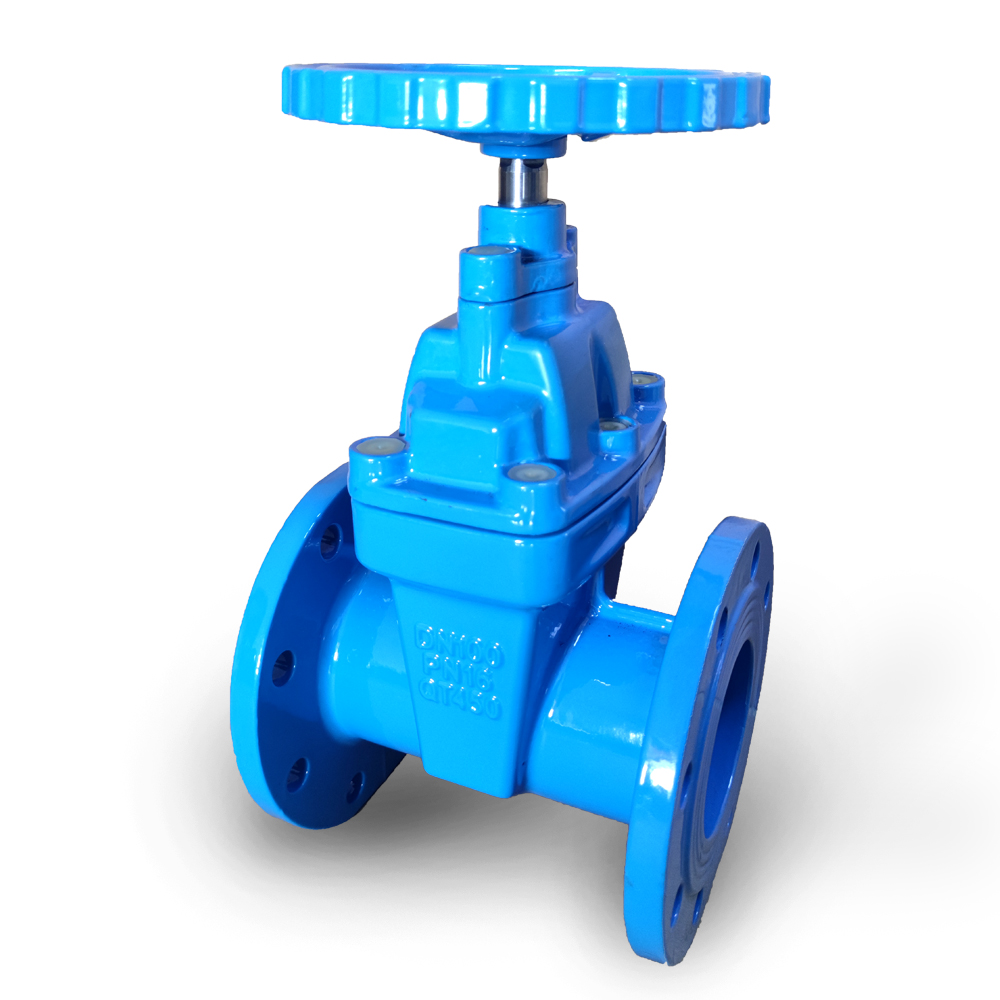

Resilient Wedge Gate Valve

SEND INQUIRY

Specifications:

Pressure: PN10/PN16
Design Code: EN593, DIN3352, API609
Size Range:DN40-600, NPS 1.5"-24"
Face to Face: BS5163, DIN3202 F4/F5, BS5155, API609
End Flange: BS 4504 PN6/PN10/PN16, DIN2501 PN6/PN10/PN16, ISO 7005 PN6/PN10/PN16, JIS 5K/10K/16K, ASME B16.1 125LB, ASME B16.1 150LB, AS 2129 Table D and E
Test inspection: , BS10 Table D and E EN 12266-1, API 598

Materials:

Body: Ductile Iron/Cast Iron/Stainless Steel
Wedge: Ductile Iron+EPDM(Resilient Seated)
Stem: Stainless Steel 304/410/420

Characteristic:

• Media: Potable water and other non-aggressive fluids

• Nominal pressure designation PN10/16 bar

• Temperature range: 0°C-80℃

Recommended for you:

Detail / Feature / Application

• Stem sealing package with additional third O-ring ensures better water tightness
• Replaceable O-rings under pressure according to ISO 7259
• Double lead driving thread made by rolling ensures smooth, quick operation and low torque
• Rubber encapsulated wedge providing seat tightness rate A (acc. to EN 12266-1) (acc. to EN 12266-1)
• Bonnet gasket wrapping each bolt providing better isolation from environment
• Completely free and full bore design ensures self- cleaning and low pressure loss
• Clockwise closing direction, non-rising stem
• Fusion bonded epoxy coated inside and outside
• Color: Blue RAL 5005
