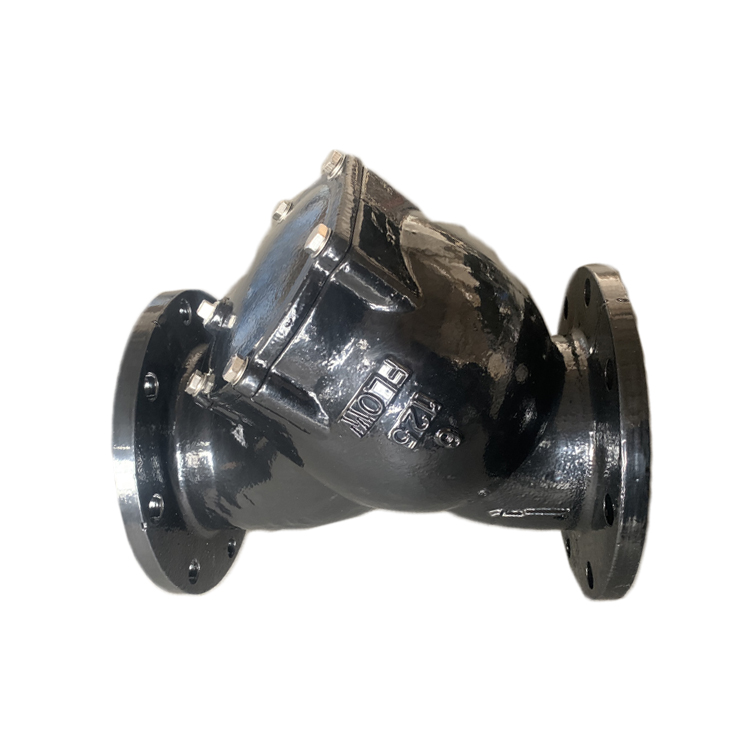

ANSI Y Type Flange Strainer

Specifications:

  • Size: 4"-12"

  • Pressure: 150LB

  • Standard: ASME B16.5 150LB, API609, API598

Materials:

  • Body: Ductile Iron

  • Filter: Cast steel

Characteristic:

  • Medium: Water, Steam, GasFilter aperture Ф0.8-Ф3mm

  • Temperature: 0 to 200℃

More Information

More Information

Features of ANSI Y Type Flange Strainer

  • The product is mainly installed on all kinds of water supply and drainage pipeline or steam pipeline and gas pipeline. Used toprotect the rest of the fitting or valve from debris and damage of impurity in the system.

  • Easy to use and fast. According to user requirements to cover the screw on the change into ball valve, ball valve outletdrainage pipe, so that you can not open the cover, sewage with pressure.

  • Can according to user requirements to provide different filtration precision of mesh. Filter cleaning easy to change.

  • And fluid channel design scientific and reasonable, flow resistance smaller, more traffic, the total area of the mesh is 3 ~ 4times the size of nominal diameter.

About KXC

KXC Valve, as an expert of ANSI Y Type Flange Strainer, always remembers to stick to the development discipline that quality is the key power to the company. Since we have the strict quality control system, so we can guarantee the overall production process of ANSI Y Type Flange Strainer. If you're looking for the business partner who supplys best quality ANSI Y Type Flange Strainer, we would like to develop reliable cooperation with you. Please feel free to contact us for more details or get free quotation from us.
